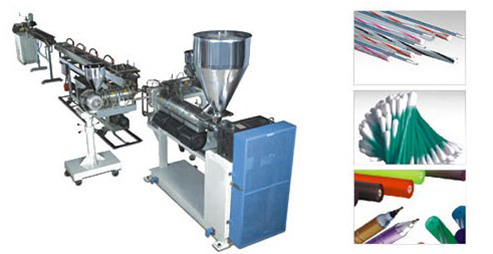

- Main Extruder, 50mm Screw diameter.

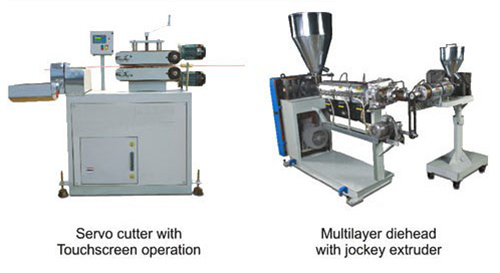

- Jockey Extruder for Multi-Colour application.
- Insulated SS Water Tank for efficient cooling.
- Haul-Off unit with individual drive facility.
- Manual / Servo Cutter with single or double blade option.
- Total Power Consumption for Complete Plant : 25KW

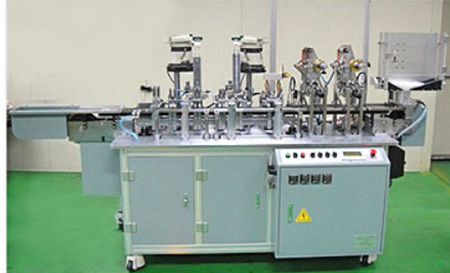

Automatic Ball Point Pen Assembly Machine
Automatic D.F. Pen Chamfering Machine
Sequence Of Working Station.
- Barrel Feeding
- Front sizing( Front Facing)
- Half Chamfering
- Full Chamfering
- Back facing
Production Rate
- 100 To 120Pcs/min For Two Stage.
- 60 to 70pcs/min for single state.

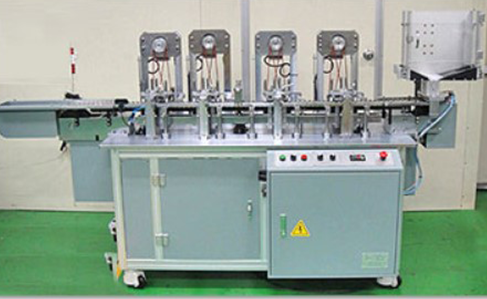

Automatic D.F. Pen / Refill Ink Filling Machine
Sequence Of Working Station.
Barrel feeding
• Ink Filling
• Adaptor Fitting
• Tips Fitting
• Hot Stamping
• Optional Grease follower
Production Rate
• 100 To 120Pcs/min For Two Stage
• 60 to 70pcs/min for single state
Machine Availability Single Stage/Two stage
